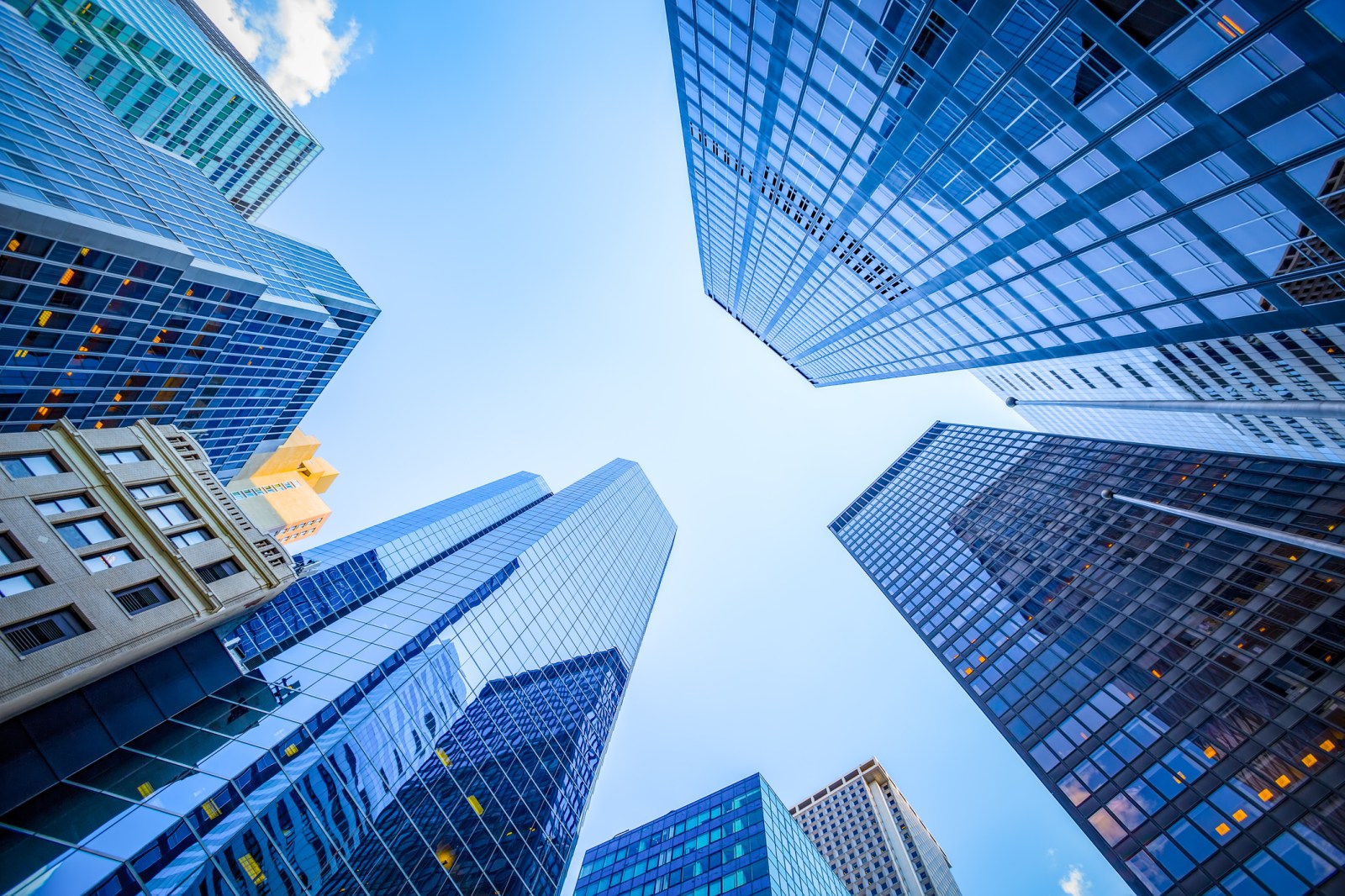

Skyscrapers are often recognized for their height and shimmering facades, yet a significant portion of their complexity remains hidden. Underneath the public floors and observation decks lies a network of concealed floors critical for the building’s stability, safety, and function. According to Zaeem Chaudhary, a director and chartered architectural technologist at AC Design Solutions, these hidden floors are more prevalent than many realize and are intentionally omitted from public floor numbering. These include mechanical plant floors, structural transfer levels, and fire refuge floors that exist for engineering and safety purposes.
Despite being invisible to most occupants, these hidden levels are essential to a skyscraper’s operation. From mechanical systems to structural cores and damping systems, they facilitate the unseen engineering necessary for skyscrapers to reach extreme heights.
Focus on Efficiency and Sustainability
As urban populations grow, architects and engineers are prioritizing the efficiency and sustainability of tall buildings. Research indicates shifts in design priorities toward reducing energy consumption, incorporating renewable systems, and enhancing building performance through advanced technologies. This urgency stems from the fact that buildings and construction contribute to approximately 37% of global CO₂ emissions, as reported by the United Nations Environment Programme (UNEP). This situation has pushed the industry to innovate.
Vertical construction has become essential in land-scarce cities, driving designers to rethink how skyscrapers utilize energy, materials, and internal space to meet urban population demands.
The Invisible Infrastructure
Mechanical floors are pivotal in skyscrapers, housing vital systems like heating, ventilation, electrical equipment, and water infrastructure. These mechanical levels are distributed throughout the building, ensuring efficient operation. Tall buildings usually require multiple mechanical levels since services can’t be centralized in a single plant room at the ground level.
Hassan Baloch, a structural engineer, highlights that skyscrapers house many non-occupiable floors, including those for HVAC units, water tanks, pumps, electrical substations, and fire-protection systems. These components need to be distributed throughout the building to ensure functionality, though they remain invisible to the occupants. For instance, in megatall towers like Dubai’s Burj Khalifa, these systems are spread over several floors with larger-than-average floor heights to accommodate the equipment. This infrastructure is crucial for maintaining what engineers describe as a ‘vertical city.’
Structural Floors and Their Role
Some of the more unusual hidden floors are structural transfer floors. These stories are filled with beams and load-distribution systems rather than spaces for use. Chaudhary explains that they are included when transitioning the building’s structural layout. These floors manage structural changes, such as moving from a broad lobby to a tighter residential grid, without appearing on elevator panels.
Such transfer structures redistribute loads across columns and cores, enabling flexible architectural layouts while maintaining stability. Though unseen, these spaces are indispensable.
Similarly, systems such as outrigger and belt truss form another hidden layer. These systems connect a building’s core to its outer columns, enhancing stiffness and minimizing wind-induced sway. These components create non-usable zones, often combined with mechanical floors.
Addressing wind-induced motion is crucial in tall buildings. Engineers often use tuned mass dampers to counteract these forces, absorbing energy to reduce vibrations and improve safety and comfort. Calibrated to the building’s natural frequency, they stabilize structures against wind or seismic activity.
Ensuring Safety and Functionality
Safety design introduces another layer of hidden floors. Refuge floors, required by many fire codes, provide areas for occupants to wait safely during emergencies. They are integral to phased evacuation strategies, which are more practical for tall buildings than evacuating everyone at once.
Additionally, skyscrapers include lift overruns, communications rooms, roof plant spaces, and interstitial zones within walls or ceilings. These areas can house structural trusses, mechanical equipment, or architectural voids like those under observation decks or in open-air crown structures concealing rooftop machinery.
